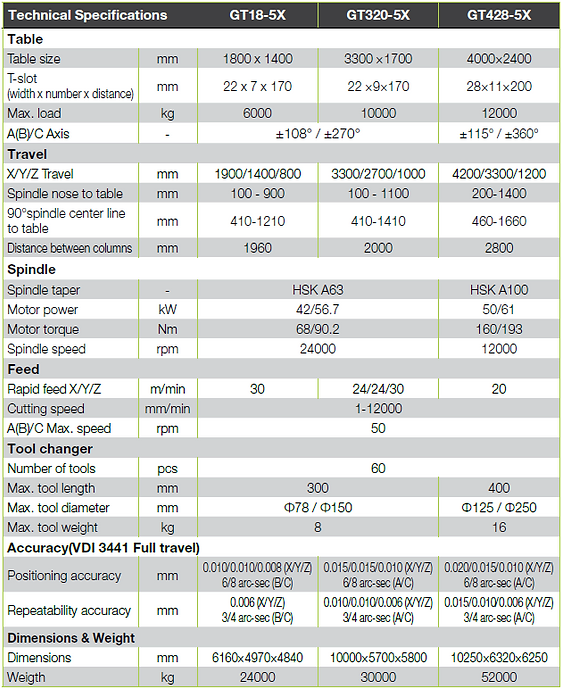

GT18 5X Technical Specifications
GT18 5X
GT18 5X Base
GT18 5X Technical Specifications

GT18-5X

5 axis simultaneous machining for XL parts with optimized double column design

Features
  • - High-speed and high-precision machining
  • - Dual drive on the Y-axis system
  • - Double-armed A(B)/C head with torque motor direct drive
  • - Heidenhain linear scales on X, Y, Z axes
Specifications
  • Table Size: 1800x2200mm
  • X Axis Travel: 1800mm
  • Y Axis Travel: 2200mm
  • Z Axis Travel: 800mm
Request Information
Category: 5-Axis Gantry

High-performance 5-axis gantry machining center designed for high-speed and high-precision machining. Excels in die and mold, electronics, defense, aerospace, and medical industries.

  • Direct drive A(B)/C head
  • Full enclosed splash guard
  • Chip conveyor (two screw type and one chain type)
  • Air-conditioned electrical cabinet
  • High precision spindle water cooler
  • Linear scales on X/Y/Z axis
  • Rotary encoder on A(B)/C axis
  • Rigid tapping
  • Ethernet, CF card and USB interface
  • Automatic lubrication system
  • Built-in spindle HSK A100 15000 rpm_40/50kW_103/129Nm, 40 pockets tool changer
  • CTS Coolant through spindle + ATS
  • Oil cooling through ballscrew
  • Oil skimmer
  • Coolant Cooling system
  • Workpiece probe
  • Tool probe
  • Dynamic Collision Monitoring (DCM)
  • Kinmatics
  • Extra 200GB SSD program memory
