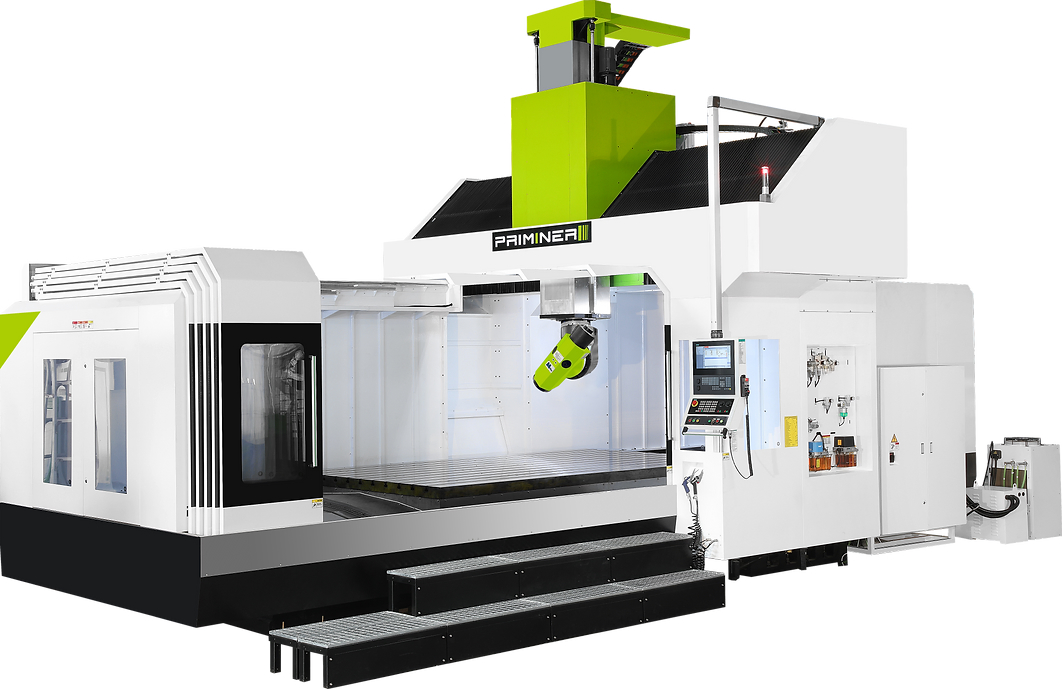

GT428-5X

5 axis simultaneous machining for XL parts with optimized double column design

Features
  • - High-speed and high-precision machining
  • - Double-armed A(B)/C head with torque motor direct drive
  • - Heidenhain linear scales on X, Y, Z axes
Specifications
  • Table Size: 4200x2800mm
  • X Axis Travel: 4200mm
  • Y Axis Travel: 2800mm
  • Z Axis Travel: 1000mm
Category: 5-Axis Gantry

High-speed and high-precision machining center designed for die and mold, electronics, defense, aerospace and medical industries. Features double-armed A(B)/C head with torque motor direct drive and Heidenhain linear scales.

  • Fully enclosed splash guard
  • Direct drive A(B)/C head
  • Chip conveyor (two screw conveyors and one chain conveyor)
  • Air-conditioned control cabinet
  • High-precision water cooler for the spindle
  • Linear scales on X/Y/Z axis
  • Rotary encoder on A(B)/C axis
  • Rigid thread cutting
  • Ethernet, CF card and USB interface
  • Automatic lubrication system
  • Built-in spindle HSK A100 12000 rpm_40/47kW_248/293Nm
  • CTS Coolant through spindle + ATS
  • Oil skimmer
  • Coolant Cooling system
  • Workpiece probe
  • Tool probe
  • Dynamic Collision Monitoring (DCM)
  • Kinmatics
  • Extra 200GB SSD program memory
