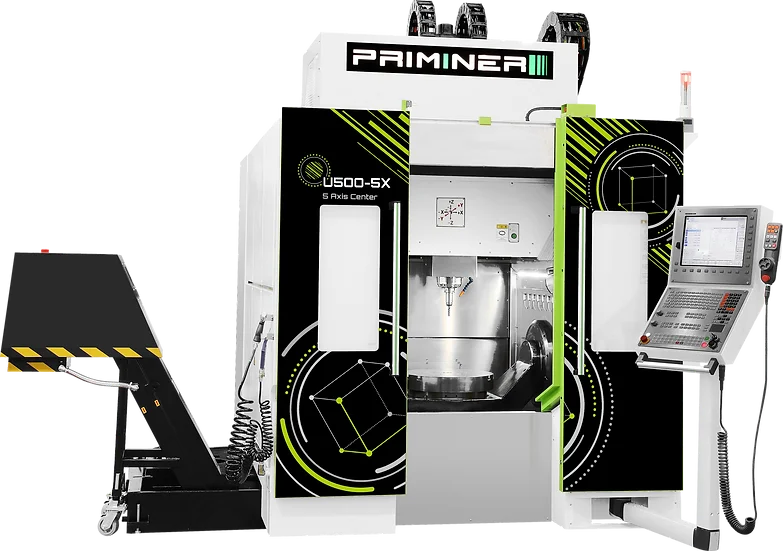

U500 5X Open Door
U500 5X Base

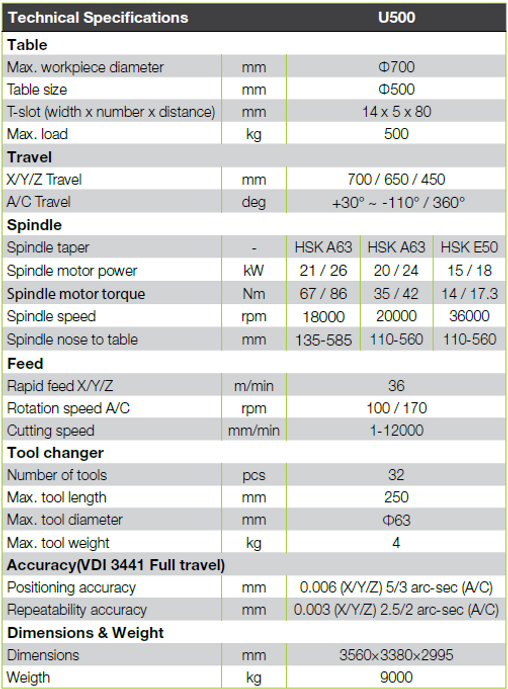

U500 5X Technical Specifications

U500-5X

Highest precision with optimized gantry design for ultimate 5 axis machining

Features
  • - Gantry design
  • - Torque motor direct drive rotary table
  • - Dual drive system with two ballscrews on Y axis
  • - Compact design with minimum floor plan area
Specifications
  • Table Size: 500x500mm
  • Spindle Speed: 20000rpm
Request Information
Category: 5-Axis High-Speed

Gantry design machining center with torque motor direct drive rotary table and dual drive system. Features compact design with minimum floor plan area.

  • Direct drive rotary table
  • Full enclosed splash guard
  • Built-in spindle HSK A63 20000 rpm
  • 32 pockets tool changer
  • Chain type chip conveyor
  • Air-conditioned electrical cabinet
  • High precision spindle water cooler
  • Linear scales on X/Y/Z axis
  • Rotary encoder on A/C axis
  • Rigid tapping
  • Ethernet, CF card and USB interface
  • Centralized automatic grease lubrication system
  • Built-in spindle HSK A63 20000 rpm
  • 32 pockets tool changer
  • Chain type chip conveyor
  • Air-conditioned electrical cabinet
  • High precision spindle water cooler
  • Linear scales on X/Y/Z axis
  • Rotary encoder on A/C axis
  • Rigid tapping
  • Ethernet, CF card and USB interface
  • Centralized automatic grease lubrication system
