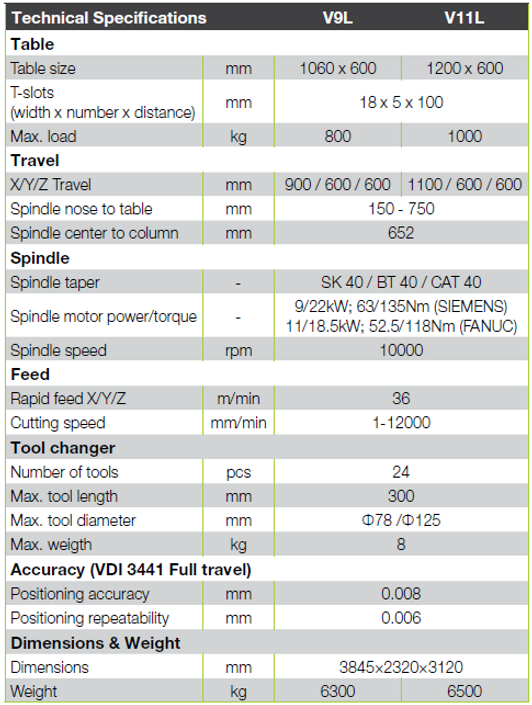

V9L V11L Technical Specifications
V11L
V11L Base
V9L V11L Technical Specifications

V9L · V11L

High performance machining centre for all types of machining

Features
  • - Cast iron is tempered for stress relief to ensure structural stability
  • - C3 class ballscrews ensures the highest accuracy and durability
  • - Pre-tension on all axis minimizes thermal distortion
Specifications
  • Spindle Speed: 10000rpm
  • Tool Changer: 24 pockets
Request Information
Category: Alpha Centre

Advanced machining center with cast iron construction tempered for stress relief. Features C3 class ballscrews and pre-tensioned axes for minimal thermal distortion.

  • Fully enclosed splash guard
  • Belt drive spindle 10000 rpm
  • 24 pockets arm tool changer
  • Chain type chip conveyor
  • Air-conditioned for electrical cabinet
  • Rigid tapping
  • Ethernet, CF card and USB interface
  • Automatic lubrication system
  • Coolant system
  • LED working lamp
  • End of program light
  • Electronic handwheel (MPG)
  • Tool box
  • Levelling bolts and blocks
  • Coolant gun
  • Air gun
  • Chip flushing system
  • User Manual
  • Chip conveyor (two screw conveyors and one chain conveyor)
  • Direct drive spindle 12000 rpm
  • Direct drive spindle 15000 rpm
  • 28 pockets arm tool changer
  • Spindle oil cooler
  • CTS Coolant through spindle + ATS
  • Oil skimmer
  • Workpiece probe
  • Tool probe
  • 4th axis
  • 4/5th axis
  • Extra 200GB SSD program memory (Only available on SIEMENS Control)
