VF900 · VF1100 · VF1300 · VF1500

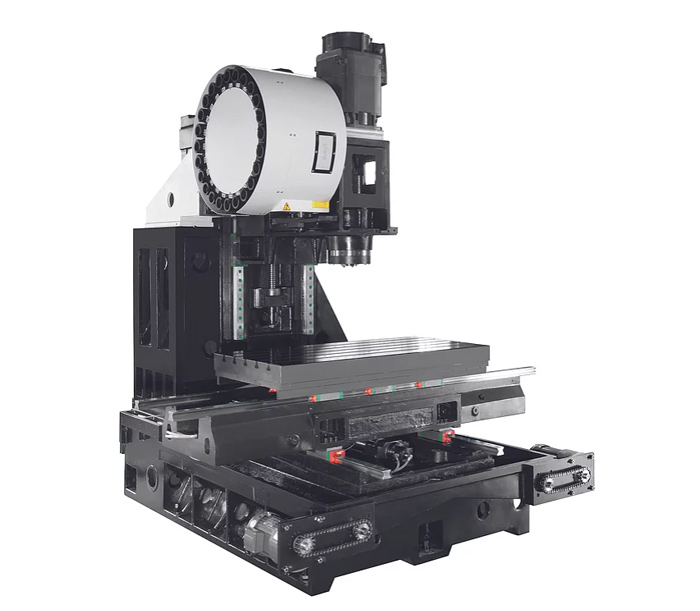

VF1100
VF1100 Head
VF1100 Base

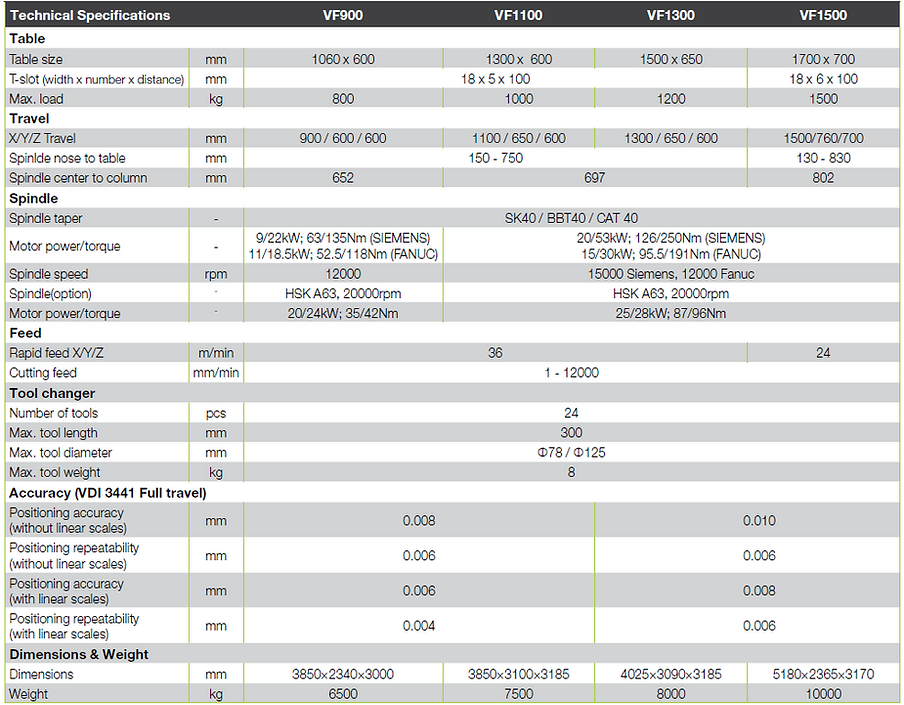

VF900 · VF1100 · VF1300 · VF1500 Technical Specifications
VF1100
VF1100 Head
VF1100 Base
VF900 · VF1100 · VF1300 · VF1500 Technical Specifications

VF900 · VF1100 · VF1300 · VF1500

Ultra High Performance for powerful and precise machining

Features
  • - Advanced design with reinforced body structure through FEM analysis
  • - Superb cutting performance and reduced vibration
  • - Extra wide machine column and base design ensures high rigidity
  • - Motor seat cooling circuit
  • - Optional linear scales
Specifications
  • Spindle Speed: 15000rpm
  • Tool Changer: 24 pockets
Request Information
Category: VF Series

VF series ultra high performance center specially designed for high speed and high efficiency machining applications. Features advanced design with reinforced body structure and motor seat cooling circuit.

  • Fully enclosed splash guard
  • Direct drive spindle 15000 rpm
  • 24 pockets arm tool changer
  • Two screw type and one chain type chip conveyor
  • Spindle oil cooler
  • Air-conditioned electrical cabinet
  • Motor seat cooling circuit
  • Rigid tapping
  • Ethernet, CF card and USB interface
  • Automatic lubrication system
  • Coolant system
  • LED working lamp
  • End of program light
  • Electronic handwheel (MPG)
  • Built-in spindle HSK A63 20000rpm
  • 28 pockets arm tool changer
  • 40 pockets chain type tool changer
  • CTS coolant through spindle + ATS
  • Oil cooling through ballscrew
  • Oil skimmer
  • Linear scales on X/Y/Z axis
  • 4th axis
  • 4/5th axis
  • Workpiece probe
  • Tool probe
  • Extra 200GB SSD program memory
